Flow：0.0002-25mL/min

Using  tubing：Inside  diameter  range：0.19-3mm；wall  range：0.7-1.1mm

Number of channels: 1, 2, 3, 4, 5, 6, 8, or can be combined in series, for example, 8+8=16

Application: Commonly used for small dose multi-channel dispensing and transmission of various liquids, such as pharmaceutical, food, chemical, biological, laboratory and other industries; thinner tubes can be used, and the pump head is 8 rollers, so as to achieve for small flow transmission and sub-packing, the number of channels that can be selected is more flexible; the cam structure is used to install the tubing conveniently and quickly

Characters

1. 5-inch 320*240 high-brightness LCD display, all operating parameters are displayed on the same screen, the operation is simple and easy to understand.
2. Adopt "dual CPU" control, drive and control separation, fast operation speed, stable operation, high transmission accuracy, precise one-key filling function, repeat accuracy up to ±0.5%.
3. It has the functions of automatic flow correction, sound reminder, stepless speed regulation, start-stop, reversing and other It is equipped with a full-speed button and has fast filling and emptying functions.
4. Abundant external control functions are For example, the DC12V output is convenient for direct connection to a variety of sensors, capacitive sensors, liquid level sensors, photoelectric sensors, etc.; the product hardware reserves a variety of circuit interfaces to meet the special customization needs of customers.
5. A stepper motor is used to control the rotation speed, which is not affected by the load change, high torque, low power consumption, and strong adaptability.
6. Excellent driving circuit performance, good heat dissipation, low working noise, stable operation, and power- down memory function. The internal circuit is treated with Three anti-paint proof, excellent at anti-interference performance, wide voltage design, suitable for complex power supply environment.
7. BL-H series products are equipped with handles for easy carrying; various pump heads can be
8. The roller device adopts full ball bearing design, supports high-speed operation, long life, stable operation and low
9. The pressing block and the base are formed at one time by the machining center, with high dimensional accuracy and precise
10. Card material is imported POM, which has high wear resistance, high dimensional accuracy and long service
11. The card adopts a cam structure, opened from above, easy to disassemble, easy to replace and fix the tubing, the pressure can be fine-tuned to adapt to tubes with different wall thicknesses, and the application is
12. Multi-channel When the driving capacity permits, multiple pump heads can be connected in series and multiple drivers can be connected.
13. The roller device is made of 304 stainless steel, which is suitable for occasions with high requirements of complex environment and hygienic level.

• Specifications

  Drive model: BL100H

  Speed range: 0.1-100rpm

  Speed resolution: 0.1rpm

  Precision: Transferring precision: ±0.5%;  Repeating precision: ±0.3%

  Display: LCD screen (3.5 inch)

  Operate mode: Membrane keypad + Digital control knob

  External control: 0-5V (standard)、0-10V (optional)、4-20mA (standard), 0-10K (standard)

  External control type: Start /stop, Direction change【TTL 5V (standard), TTL 12V (optional), TTL 24V (optional)

  Port output: DC12V Power Output; DC5V TTL Output (optional)

  Communication interface: RS232, RS485 (Start/stop, Direction change, speed control)

  Power supply: AC220V±10%, 50Hz/60Hz(standard); AC110V±10%, 50Hz/60Hz; AC380V±10%, 50Hz/60Hz(optional)

  Power consumption: ≤30W

  Operating condition: Temperature, 0℃ to 40℃;  Relative humidity < 80%

  IP rating: IP31

  Drive weight: 5.3kg

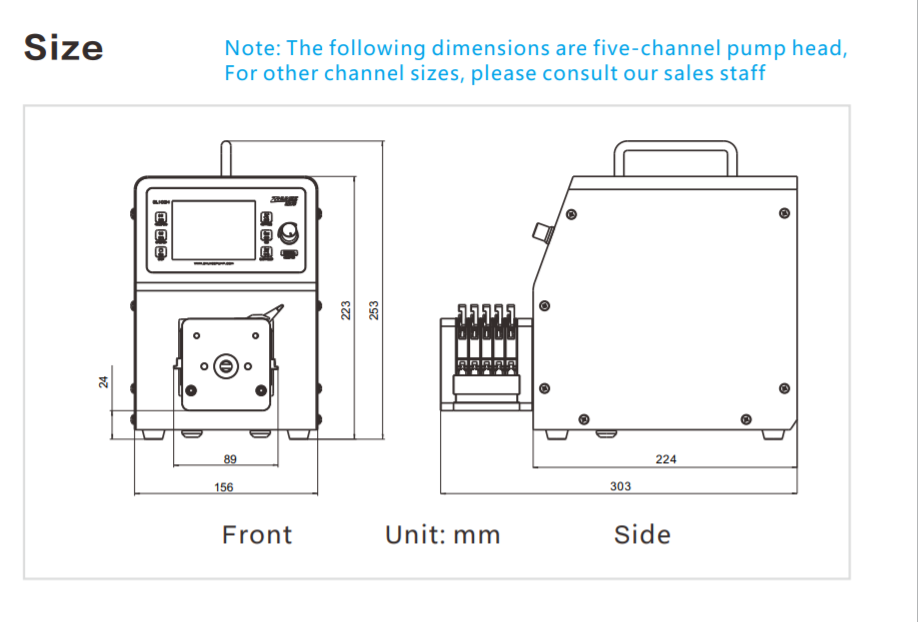

  Drive size: Length * Width * High: 224mm*156mm*262mm (with the handle)

  Using tubing 0.19-3mm；

  Tubing wall ：0.7-1.1mm

  Flow range :0.0002-25mL/min

  Pressure Adjust: Yes

  Roller material: SS

  Roller number : 1-8 for options
